NEW DESIGN
As their newest utility cargo bike, the Benno 46er is an extremely versatile addition to the cargo bike line-up. With more load capacity than the compact Benno RemiDemi and a shorter wheelbase than the incredibly popular Benno Boost, the 46er sits somewhere in the middle. A fantastic option offering agility and stability with a great load capacity, and all in a step through frame!
Designer Benno Baenziger explains that the 46er is rather unique in that it is a similar length to regular bikes but that is about the only similarity. Benno has taken innovation to another level with the 46er. “they ditched convention and added capability”. Starting with the wheels, which on the 46er are different sizes. The front gets a 26” for comfort and control, and at the rear 24” wheel lowers the centre of gravity which offer more strength and stability, especially when loaded.
The 46er is available in one size that suit riders from 5’1” to 6’3” because of the adjustable seatpost and step-through frame geometry.
To add to this package, the 46er has front suspension making it an even smoother ride on uneven terrain.
CARRYING CAPACITY AND ACCESSORIES
Despite the compact look, the 46er can carry a bunch of cargo – up to 190kg, to be precise (including the rider). This can be distributed across the bike, with the front rack taking up to 10kg and the rear rack up to 60kg.
The rear of the bike can be fitted with a variety of products ranging from a child seat for the younger kids to sideloaders (footrests) for the older children. This means the bike is here to stay, no reason to update as the kids get older, just swap out the accessories.
The 46er is available with an abundance of accessories, and these also include a kickstand and integrated front and rear lights, so those are always going to be attached when you need them
BOSCH COMPONENTS
The 46er is running the top-of-the-range Bosch Performance Line Speed motor, offering 85Nm torque and assists up to a whopping 45km/h! The battery is 500Wh battery for good range and this can be doubled with the addition of a second battery, as the 46er is upgradable to a dual-battery system.
SPECIFICATION
BOSCH PERFORMANCE SPEED
- Motor: Bosch Performance Speed 250W, 85Nm, GEN 4 Bosch Performance CX 250W, 85Nm, GEN 4
- Assisted Speed: 45km/h
- Battery: Bosch PowerTube 500Wh Lithium-Ion, DualBattery Compatible (Not Included)
- Charger: Bosch Compact 4A
- Charging Time: 4.5h 4.5h
- Controller: Bosch Purion Display
- Headlight: German Supernova Mini 2
- Tail Light: German Supernova E3
FRAMESET
- Frame: 6061 Aluminum Alloy with Front Tray Mounts

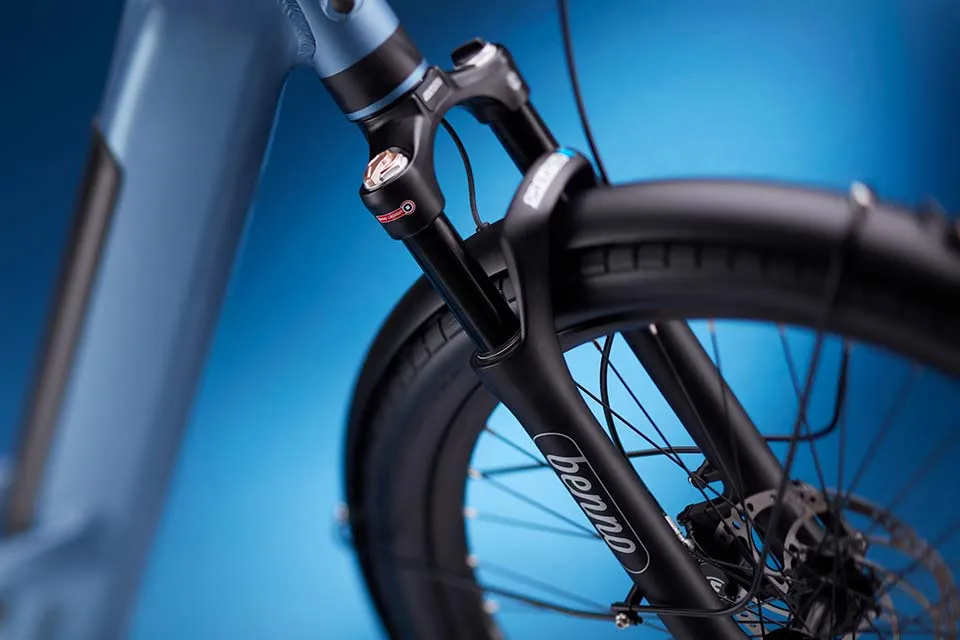

- Fork: Suntour SF18 MOBIE 25, 75mm Travel
- Seat Collar: Aluminum, Q/R, 34.9mm
WHEELS
- Front Hub: Shimano MT400 36h, 15mm Thru-Axle, Center Lock Disc
- Rear Hub: Shimano MT400 36h, 12mm Thru-Axle, Center Lock Disc
- Rims: Aluminum, Double Wall with Eyelets, 36H
- Spokes: Stainless 14G
- Tires: Benno Dual Sport (Front 26″ x 2.35″/ Rear 24″ x 2.6″) Puncture Resistant, 60 TPI, Cargo Speed Rated (180kg/Tire)
DRIVETRAIN
- Shifters: Shimano Deore
- Rear Derailleur: Shimano Deore 10-Speed
- Front Cog: 44T
- Chain: Taya e-DECA-101, 132 Links
- Cassette: Shimano 10-Speed, 11~42T
COMPONENTS
- Saddle: Benno Endurance with Rear Handle
- Seatpost: Aluminum, Diameter 30.9mm, Length 350mm
- Handlebar: Aluminum, Width 675mm, Rise 76mm
- Grips: Benno Ergo Profile, Lock-On
- Stem: Aluminum, Threadless, Extension 50mm
- Headset: Top: Cane Creek ViscoSet, Mid-Tune / Bottom: FSA Integrated
- Fenders Extruded Aluminum
BRAKES
- Front Brake: Magura MT Thirty Disc 4 Piston, Rotor 180mm
- Rear Brakes: Magura MT Thirty Disc 2 Piston, Rotor 180mm
- Brake Levers: Magura MT Thirty
ETILITY FEATURES

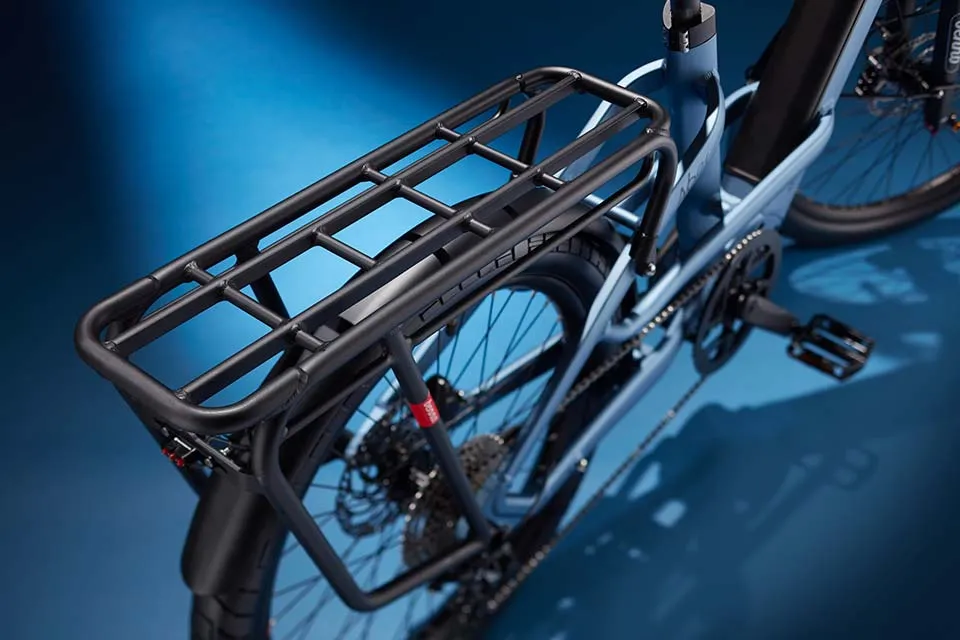

- Rack: 46er Rear Rack, 19mm Tubing, Aluminum, Max. Load 130lbs/60kg
- Front Tray: Compatible (Not Included)
- Baby Seat: Designed for Thule Yepp EasyFit and Other Compatible Rack Mount Child Seats Single (Not Included)
- Rail System: Compatible (Not Included)
- Accessories: Fits Most Aftermarket Pannier Bags and Accessories
- Frame: Size One Size – Fits Riders from 5’1” to 6’3”
